PORTABLE WINCH - GAS POWERED PORTABLE WINCH - PCW4000-A

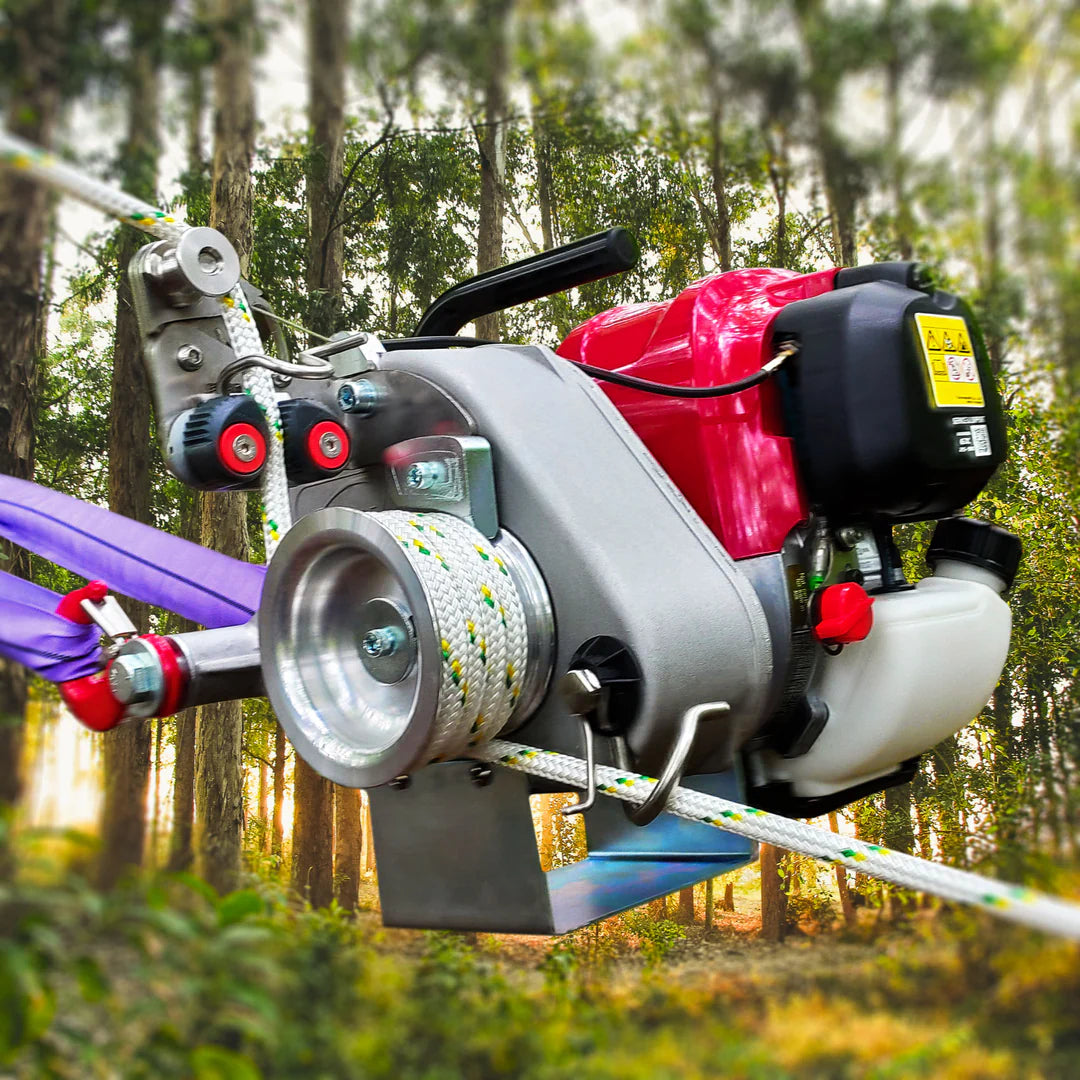

The PCW4000 features a centrifugal clutch that activates when you pull the rope. The more you pull, the more throttle you give. When the tension on the rope is released, the drum stops spinning and the Progress Capture System (PCS) holds the load flawlessly in position! A simple lateral movement is all it takes to disengage the rope. Easy to secure and easy to disengage!

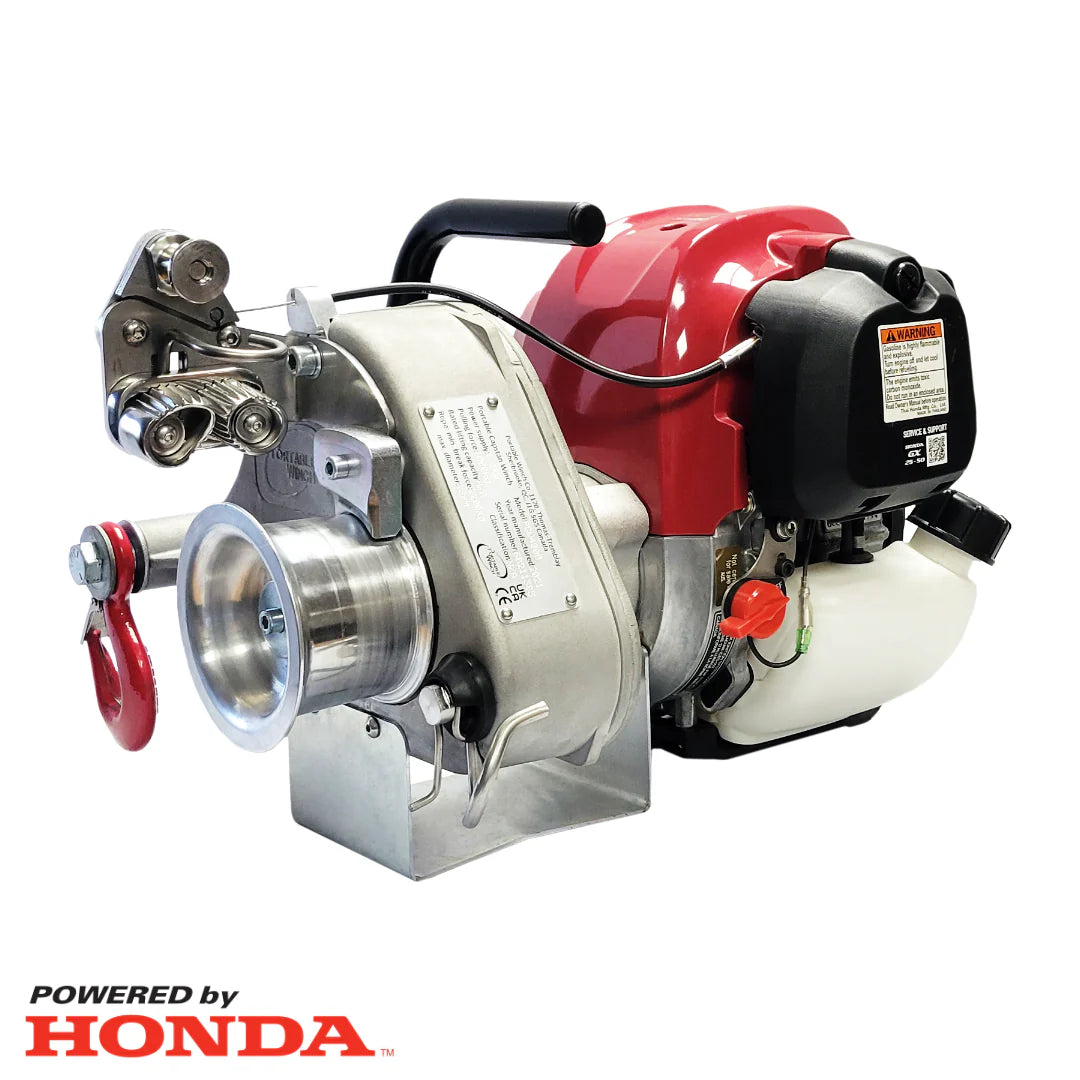

This model is powered by the 360° inclinable 4-stroke Honda GX50 engine for smooth performance and reliability, offering a remarkable pulling force of 1,000 kg (2,200 lb). Add a pulley system of two double pulleys; you can pull up to five times (5x) the pulling capacity, for a total of 5,000 kg (11,000 lb)!

Winch Characteristics:

• Designed in 2012
• Powered by Honda GX50 4-stroke - 360° inclinable - Air-cooled - 1.47 kW (2.0 HP) @ 7000 rpm
• Unleaded gasoline, 86 octane or higher

• Delivers up to 2,200 lb pulling force at 44 ft/min
• Drum size: 76 mm
• Recommended rope diameter: 3/8"
• What's included with the winch: an 8' round sling (PCA-1350)
• Not designed for lifting!

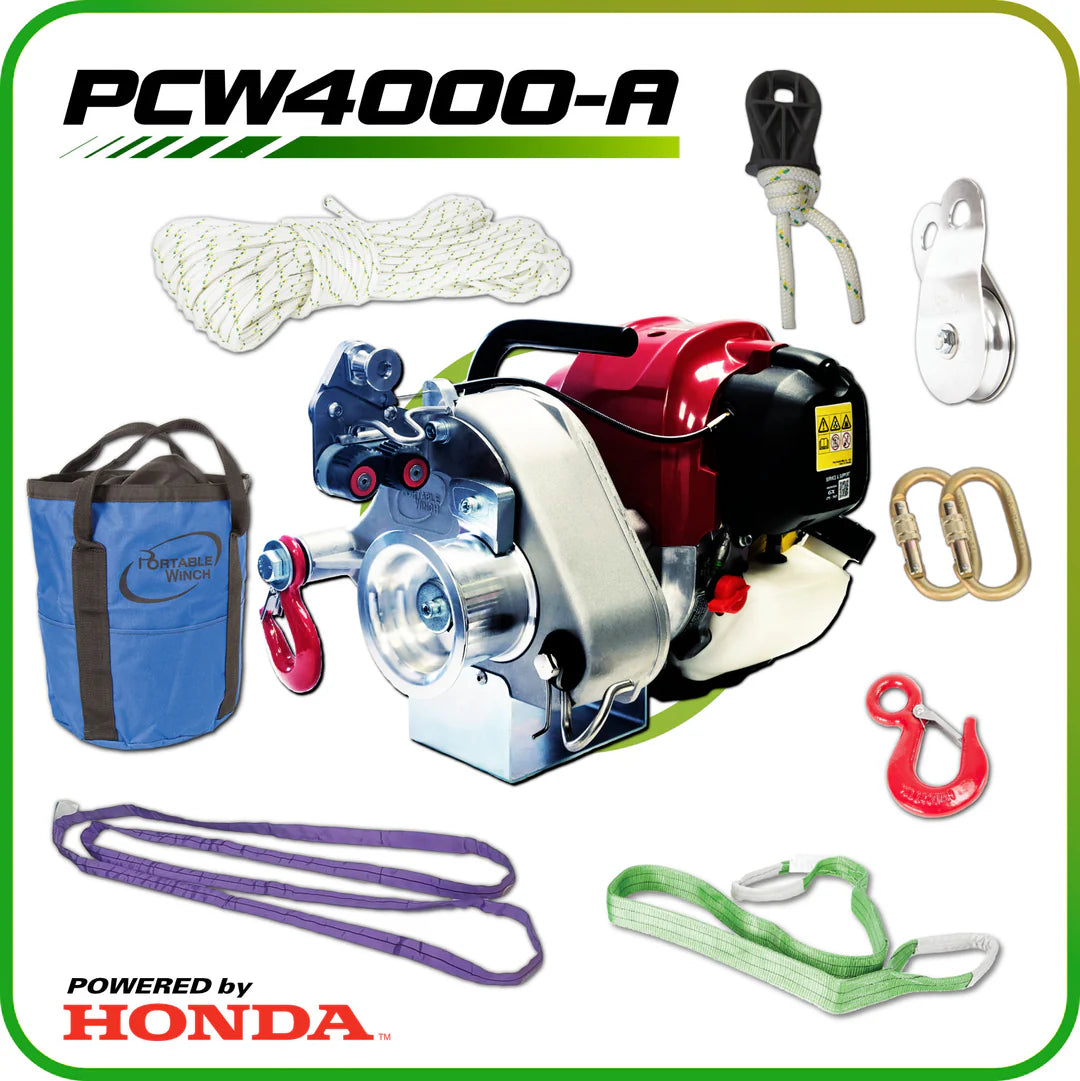

Included Accessories:

• PCW4000 : GX50 Gas-Powered Winch
• PCA-1205M : Double-Braided Polyester Rope - 10 MM X 50 M

• PCA-1360 : Ropewizer : High Resistance Thimbles For Ropes 10 to 12 MM Ø
• PCA-1255 : Rope Bag - Small
• PCA-1275 : Swing Side Snatch Block - 1 x 76 MM
• PCA-1276 : Steel Locking Carabiner - 25 kN
• PCA-1281 : Safety Hook With Latch
• PCA-1260 : Polyester sling - 60 mm x 2 m

• PCA-1350 : Endless Round Polyester Sling

Mfg Part#

PCW4000-A
